G-500SS Series (5-10 HP)
MOTOR
Continuous Duty Rated Squirrel Cage Induction Motor rated IP68 completely submersible, Class H Insulation (180ºC) triple dipped and epoxied end windings.
BALL BEARINGS
500 Series – Rotor rotates on two single row, deep groove ball bearings 700 Series & higher – Single row deep groove upper bearing. Double angular contact lower bearings. Bearings are enclosed with high temperature grease containing special anti-corrosion additive.
SHAFT SEAL
Tandem SC/SC & SC/SC Upper and lower mechanical seals wholly enclosed in a pressure compensated oil chamber. TC/TC are optional.
POWER CABLE
Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft, (15m) length (standard).
CABLE ENTRY SEAL
Water Dam type cable entry seal designed without Silicones or Epoxies.

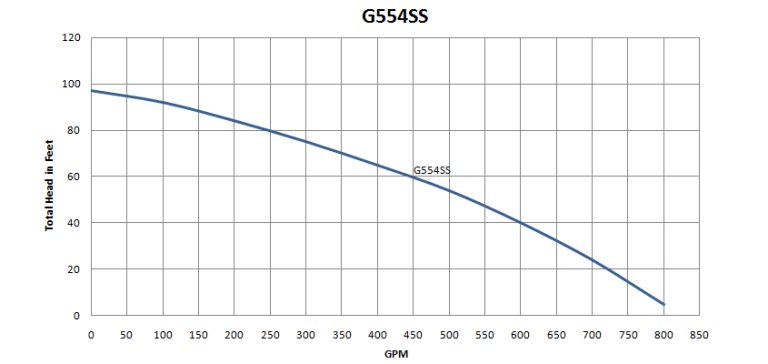

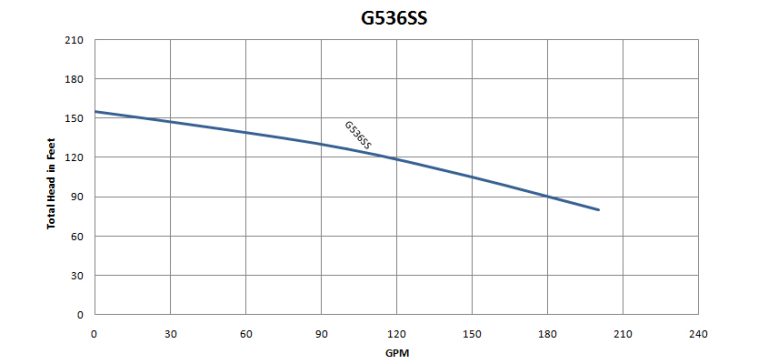

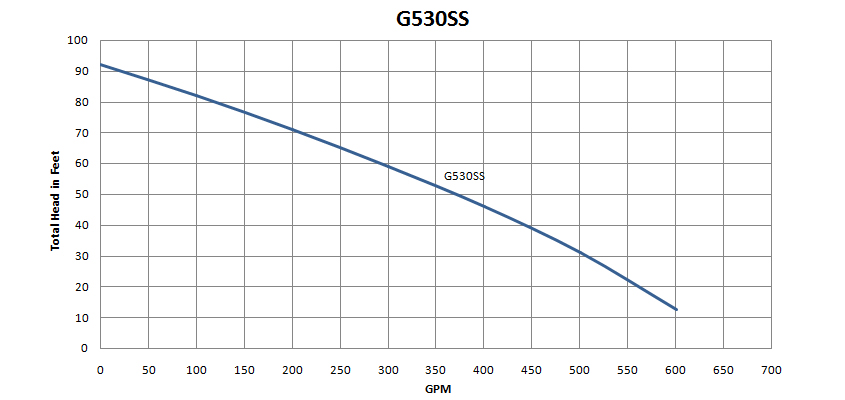

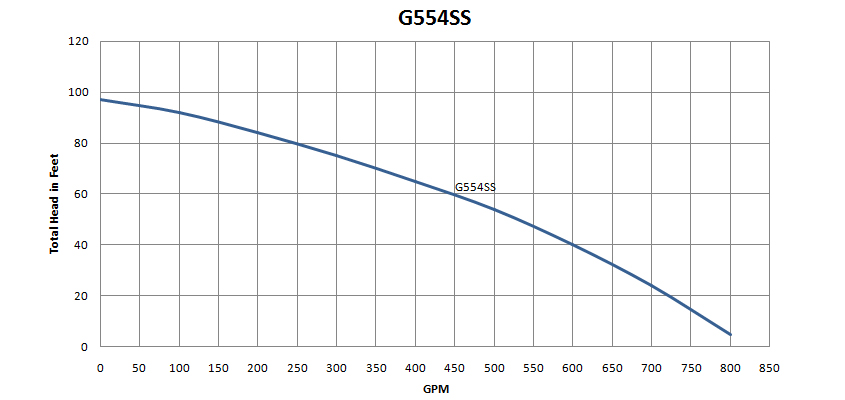

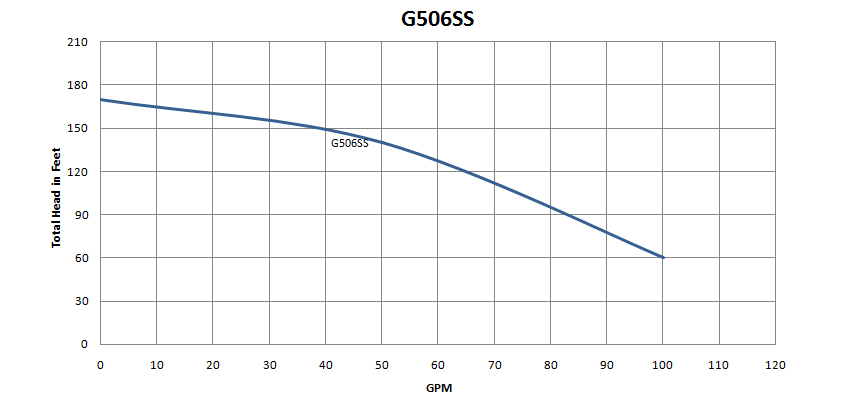

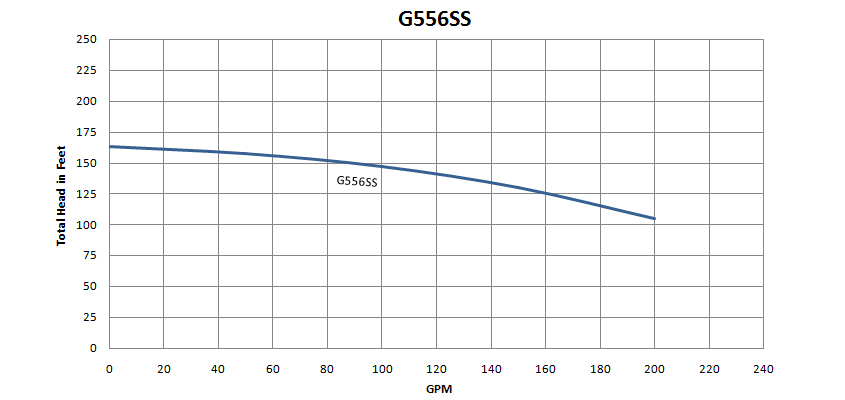

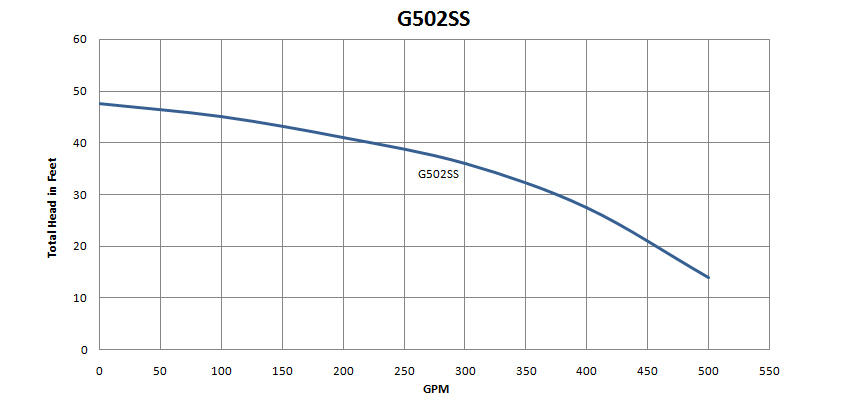

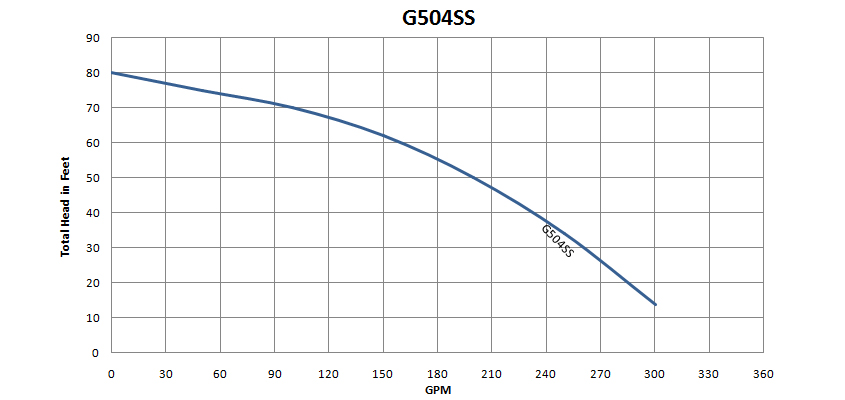

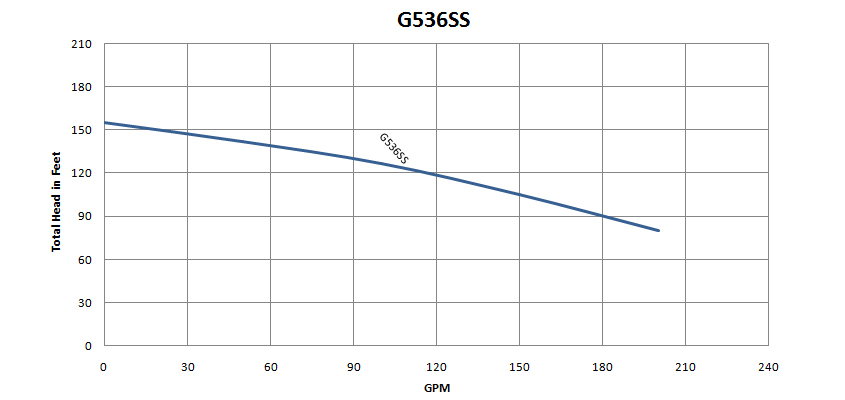

| 60Hz | G502T/SS | G504T/SS | G506T/SS | G530T/SS | M536T/SS | M554T/SS | M556T/SS |
|---|---|---|---|---|---|---|---|
| Discharge Connection (inches) | 4″/3″ | 4″/3″ | 3″ | 4″ | 3″ | 4″ | 3″ |
| Rated Power (HP/kW) | 5/3.7 | 5/3.7 | 5/3.7 | 7.5/5.5 | 7.5/5.5 | 10/7.5 | 10/7.5 |
| Speed (rpm) | 3400 | 3400 | 3400 | 3400 | 3400 | 3400 | 3400 |
| Rated Current @ 230v (3 Ph.) | 14.2A | 14.2A | 14.2A | 22A | 22A | 28A | 28A |
| Rated Current at 460v (3 Ph.) | 7.1A | 7.1A | 7.1A | 11A | 11A | 14A | 14A |
| Rated Current at 575v (3 Ph.) | 5.68A | 5.68A | 5.68A | 8.8A | 8.8A | 11.2A | 11.2A |
| Soldis Passage (mm, inches) | (25 x 6), 1″ x1/4″ | (25 x 6), 1″ x1/4″ | 6, 1/4″ | (30 x 9.5), 1-3/16″ x 3/8″ | 6, 1/4″ | (30 x 9.5), 1-3/16″ x 3/8″ | 6, 1/4″ |
| Submergence (min, max) | Min – 5″ (127mm), Max – 50′(15m) | Min – 5″ (127mm), Max – 50′(15m) | Min – 5″ (127mm), Max – 50′(15m) | Min – 5″ (127mm), Max – 50′(15m) | Min – 5″ (127mm), Max – 50′(15m) | Min – 5″ (127mm), Max – 50′(15m) | Min – 5″ (127mm), Max – 50′(15m) |
| Height (mm, inches) | 641.35, 25 1/4″ | 641.35, 25 1/4″ | 641.35, 25 1/4″ | 724, 28 1/2″ | 724, 28 1/2″ | 749.3, 29 1/2″ | 749.3, 29 1/2″ |
| Weight [kg/ lbs] | 50/110 | 50/110 | 52/115 | 59/130 | 61/135 | 64/142 | 67/147 |
