M-200SS Series (2.2 – 3.7kW)
Specifications
MOTOR
Continuous Duty Rated Squirrel Cage Induction Motor rated IP68 completely submersible, Class H Insulation (180ºC) tripple dipped and epoxied end windings.
BALL BEARINGS
The rotor rotates on two single row, deep groove ball bearings, enclosed with high temperature grease containing special anti-corrosion additive.
SHAFT SEAL
Tandem SC/SC & SC/SC Upper and lower mechanical seals wholly enclosed in a pressure compensated oil chamber. TC/TC are optional.
POWER CABLE
Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft, (15m) length (standard).
CABLE ENTRY SEAL
Water Dam type cable entry seal designed without Silicones or Epoxies.

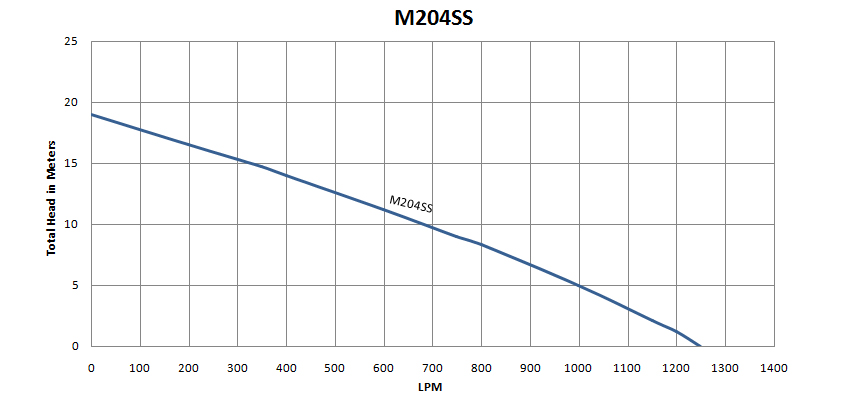

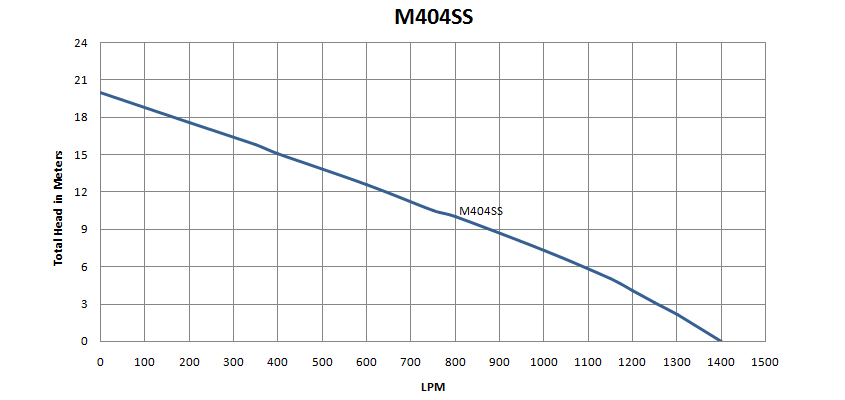

| 50Hz | M204T/SS | M204ST/SS | M404T/SS |
|---|---|---|---|
| Discharge Connection – (mm) | 80 | 80 | 80 |
| Rated Power – (HP/kW) | 3/2.2 | 3/2.2 | 5/3.7 |
| Speed – (rpm) | 2800 | 2800 | 2800 |
| Rated Current @ 110v (1 Ph. ) | N/A | N/A | N/A |
| Rated Current @ 220v (1 Ph.) | N/A | 39.7A | N/A |
| Rated Current @ 220v (3 Ph.) | 10A | N/A | 14.5 A |
| Rated Current at 400v (3 Ph.) | 5.79A | N/A | 7.71 A |
| Rated Current at 575v (3 Ph.) | 3.83A | N/A | 5.57A |
| Solids Passage – (mm, inches) | 6, 1/4″ | 6, 1/4″ | 6, 1/4″ |
| Submergence – (min, max) | Min – 5″ (127mm), Max – 50′(15m) | Min – 5″ (127mm), Max – 50′(15m) | Min – 5″ (127mm), Max – 50′(15m) |
| Height – (mm, inches) | 666.75, 26 1/4″ | 724, 28 1/2″ | 724, 28 1/2″ |
| Weight – (kg/lbs) | 35/77 | 40/88 | 36/79 |
