4-pole induction continuous rated motor with squirrel cage rotor. Bi-metallic switches (thermals) embedded in stator winding to protect against overheating. Stator insulation class ‘H’ (180ºC)

BALL BEARINGS

The rotor shaft is carried in two ball bearings. Double row contact lower bearing is capable of carrying high thrust and radial loads. Upper bearing is a deep groove single row oversized bearing. The bearings are enclosed with high temperature grease containing special Anti-corrosion additive.

POWER CABLE

Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard. Type SOOW in North America, EPR in the Middle East and HO7RN in the EU. (4 core std., 7 core optional)

SHAFT SEALS

Compact Tandem Tungsten Carbide/Tungsten Carbide Upper & Lower Mechanical seals minimize shaft overhang and deflection maximizing mean time between service intervals. Optional moisture sensor available to detect progressive seal wear.

HYDRAULICS

Single Channel Impellers, Hydrodynamically balanced with improved flow pattern contribute to a virtually clog-free pump.

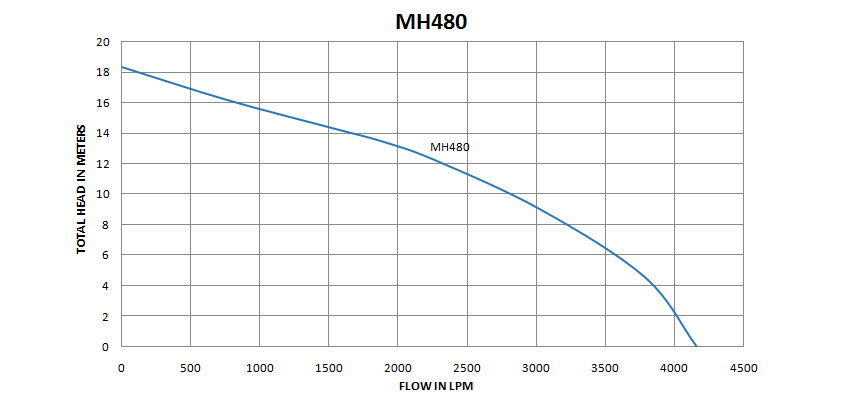

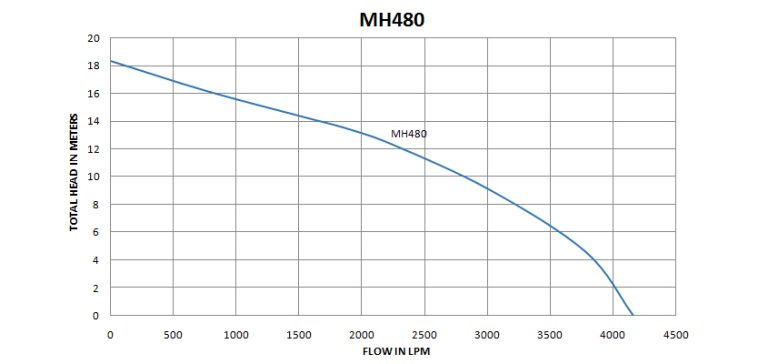

50Hz	MH480

Discharge Connection – (mm)	150 mm
Power Range – (kW)	7.5
Max Flow Range – (LPM)	4200
Max Shut-Off Head – (m)	18m
Solids Handling – (mm)	128A
Impeller Type	Channel
Power Supply 230/380/460/575 volts	Yes
Cooling jacket system – (optional)	No
Max Starts/Stop per hour	15
Motor- VFD rated	4 Poles
