MS 200 SERIES (2.2kW)
MOTOR(MS-230 SERIES)
2/4 pole induction continuous rated motor with squirrel cage rotor. Bi-metallic switches (thermals) embedded in stator winding to protect against overheating. Stator insulation class ‘H’ (180ºC)
MOTOR(MS-250 SERIES)
4-pole induction continuous rated motor with squirrel cage rotor. Bi-metallic switches (thermals) embedded in stator winding to protect against overheating. Stator insulation class ‘H’ (180ºC)
POWER SUPPLY
3 phase, 50/60 Hz, AC Supply. Available in any voltage frequency combination.(208/220/230/380/415/460/575/1000V)
BALL BEARINGS
The rotor shaft is carried in two ball bearings. Double row contact lower bearing is capable of carrying high thrust and radial loads. Upper bearing is a deep groove single row oversized bearing. The bearings are enclosed with high temperature grease-containing special Anti-corrosion additive.
POWER CABLE
Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard. Type SOOW in North America, EPR in the Middle East and HO7RN in the EU. (4 core std., 7 core optional)
SHAFT SEALS
Compact Tandem Tungsten Carbide/Tungsten Carbide Upper & Lower Mechanical seals minimize shaft overhang and deflection maximizing mean time between service intervals. Moisture sensor available to detect progressive seal wear.

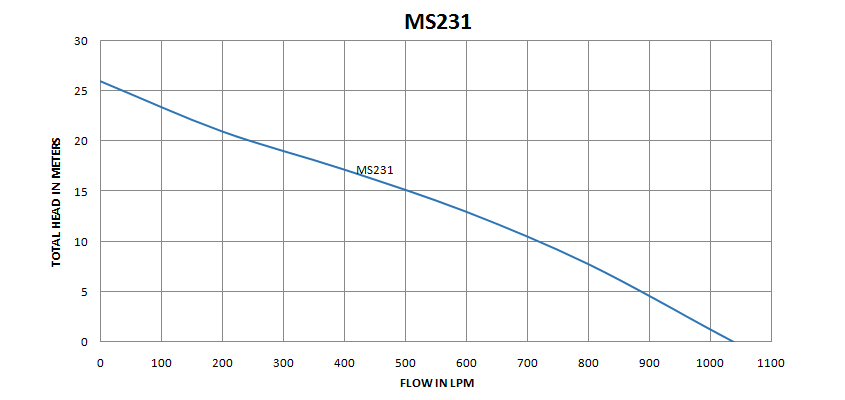

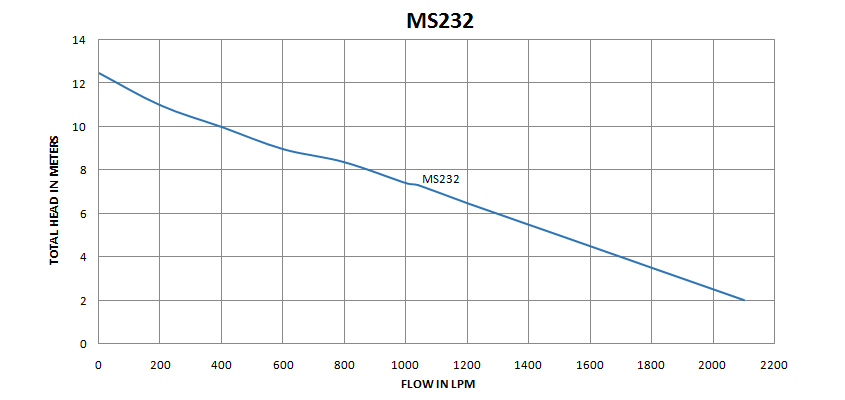

| 50Hz | MS231 | MS232 |
|---|---|---|
| Discharge Connection – (mm) | 80 mm | 100 mm |
| Power – (kW) | 2.2 | 2.2 |
| Max Flow Range – (LPM) | 1000 | 2200 |
| Max Shut-Off Head – (m) | 16 | 12.5 |
| Solids Handling – (mm) | 38 | 75 |
| Impeller Type | Channel | Channel |
| Power Supply 230/380/460/575 volts | Yes | Yes |
| Cooling jacket system -optional | No | No |
| Max Starts/Stop per hour | 15 | 15 |
| Motor- VFD rated | 2 Poles | 4 Poles |
